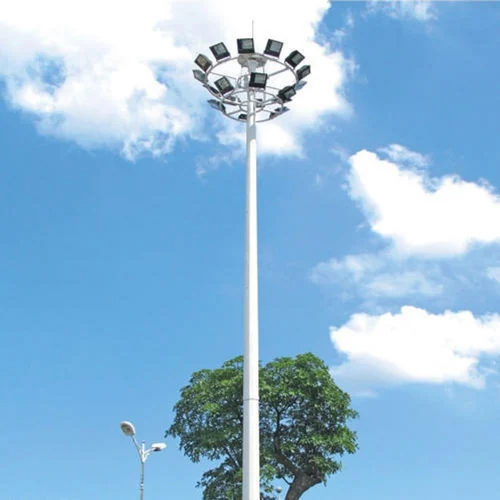

High Mast Lighting Pole

Price 65000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

High Mast Lighting Pole Specification

Weight
350 600 kg (depending on height)

Mounting Type
Flange/Base Plate Mounted

Usage & Applications
Outdoor

Thickness
4mm 10mm

Surface Finish
Hot Dip Galvanized

Product Type
High Mast Lighting Pole

Material
Mild Steel

Rated Power
400W 2000W

Length
12 to 40 meters

Voltage
220-240V AC

Lighting
LED, Metal Halide, Sodium Vapor Compatible

Input Voltage
220 240V

Working Temperature
-30C to +55C

Rated Current
10A 16A

Socket
Standard Electrical Socket

Color
Silver

Height
12 to 40 meters

Anchor Bolt Material
High Tensile Steel

Arm Length
Customizable (1.0 to 1.5 meters per arm)

Head Frame
Hot Dip Galvanized, Multi-arm (as per design)

Wind Resistance
Up to 180 km/h

Luminance
110 - 150 lm/W (LED supported)

Protection Level
IP66 (Lighting Unit)

Operation
Manual or Motorized Winch System

No. of Light Fixtures Supported
4 to 24

Compliance
As per IS 875, IS 2062, and other relevant standards

Base Plate Thickness
20 - 40mm

Raising/Lowering Mechanism
Stainless Steel Wire Rope

Foundation Bolt Diameter
24mm - 36mm

High Mast Lighting Pole Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
100 Pieces Per Week

Delivery Time
7 Days

About High Mast Lighting Pole

Reserve your spot for the finest High Mast Lighting Polea must-have solution engineered for blue-ribbon outdoor illumination. With capacity to support 4 to 24 luminaires, high wind resistance up to 180 km/h, and hot dip galvanized finish, this valuable pole promises reliability and durability. Customizable arm length, manual or motorized winch operation, and stainless steel wire rope ensure seamless operation. Rated at 400W2000W, compatible with LED, Metal Halide, and Sodium Vapor lighting, delivering 110150 lm/W and IP66 protection. Try Now for unmatched luminance and robust performance.

Versatile Outdoor Illumination Essentials

High Mast Lighting Poles are designed for stadiums, highways, ports, airports, and large public areas, delivering powerful and uniform light distribution. Their customizable features and high tensile steel anchor bolts provide robust performance. Suitable for outdoor events, industrial zones, and urban landscapes, these poles offer multi-arm head frames, high wind resistance, and corrosion-proof galvanized finish, making them the preferred choice for demanding lighting applications.

Export Markets and Reliable Supply

These High Mast Lighting Poles enjoy exceptional market value, being delivered across major export destinations like the Middle East, Africa, Southeast Asia, and Europe. Manufacturers in India ensure prompt order processing, with supply ability ranging from bulk consignments to custom orders. Sample units are available upon request, adhering to stringent compliance standards, providing international clients with confidence in quality and timely fulfillment.

FAQs of High Mast Lighting Pole:

Q: How does the raising and lowering mechanism work on this high mast lighting pole?

A: The raising and lowering mechanism operates using a stainless steel wire rope, which can be controlled either manually or via a motorized winch system for convenient maintenance and fixture replacement.

Q: What is the wind resistance capability of this high mast lighting pole?

A: This lighting pole is engineered to withstand wind speeds up to 180 km/h, ensuring stability and safe operation even in adverse weather conditions.

Q: Where are these high mast lighting poles typically installed?

A: They are commonly installed in stadiums, highways, parking lots, ports, airports, and other large-scale outdoor environments that require powerful and uniform illumination.

Q: What lighting technologies are compatible with the pole?

A: The pole is compatible with LED, Metal Halide, and Sodium Vapor lighting fixtures, providing flexibility for various lighting requirements and applications.

Q: What is the process for ordering and receiving samples of the lighting pole?

A: Potential buyers can request samples, which are processed and delivered by the supplier after order confirmation to ensure product suitability for specific applications.

Q: What are the key benefits offered by the products blue-ribbon design and material quality?

A: The pole features high tensile steel anchor bolts, hot dip galvanized surface finish, and customizable arm lengths, providing exceptional durability, long-term corrosion resistance, and tailored performance to meet specific site needs.
